Custom built air suspension
CEIKA Air Ride Coilovers
Adjust air pressure and shock length with fully threaded coilover bodies. Choose your air management system below.
AIR RIDE COILOVERSProduct images are generic. Your kit is built for your application.
Custom built · 2 year warranty
Your air ride setup
Your kit, in detail
Understand your suspension, choose your controls, and see exactly what goes into your kit.

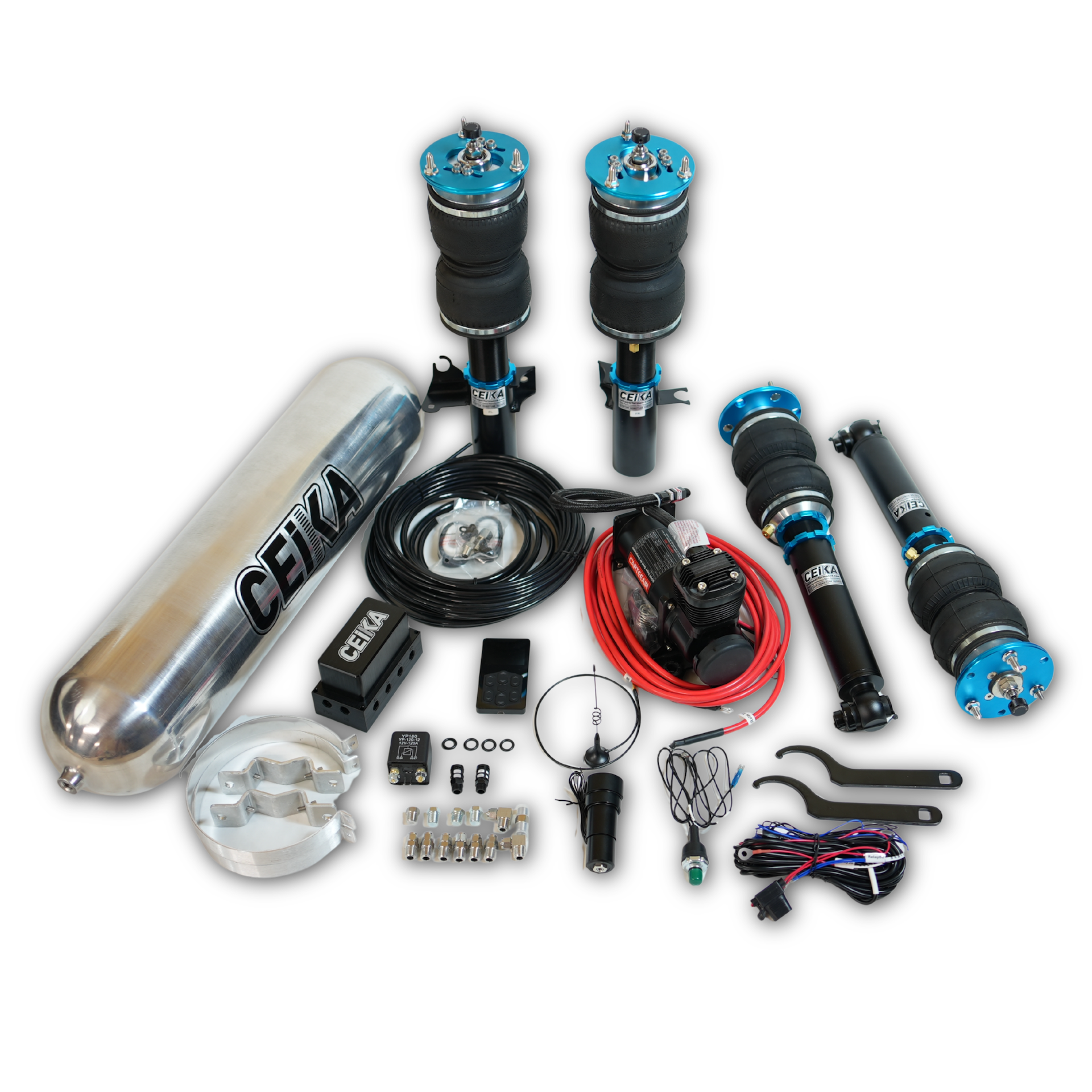

Coilovers with air bags, built for the vehicle above.
Your selected control components appear with your system choices.
Fully adjustable comfort, handling and height by air pressure and shock length adjustment with our fully threaded coilover bodies.
36 "Clicks" Damper Stiffness Adjustment to suit your preferred air pressure and ride height.
Choose from a bare CEIKA Coilovers kit with bags and build your own system or select one of our Complete Air Ride System below:
MANUAL SYSTEM:
This is the simplest kit. It does not come with fancy remote but the manual switch panel with allow to adjust front and rear pressure with two pneumatic switches. Air hoses will need to be routed to the switch panel.
PRO 2-WAY SYSTEM:
Remote Adjustability kept simple. This kit comes with a simple key ring remote, an electronic switch panel with pressure gauge and a small controller unit that allow to control a x4 Solenoids Valve manifold. It does not store pressure/height presets.
PRO 4-WAY SYSTEM:

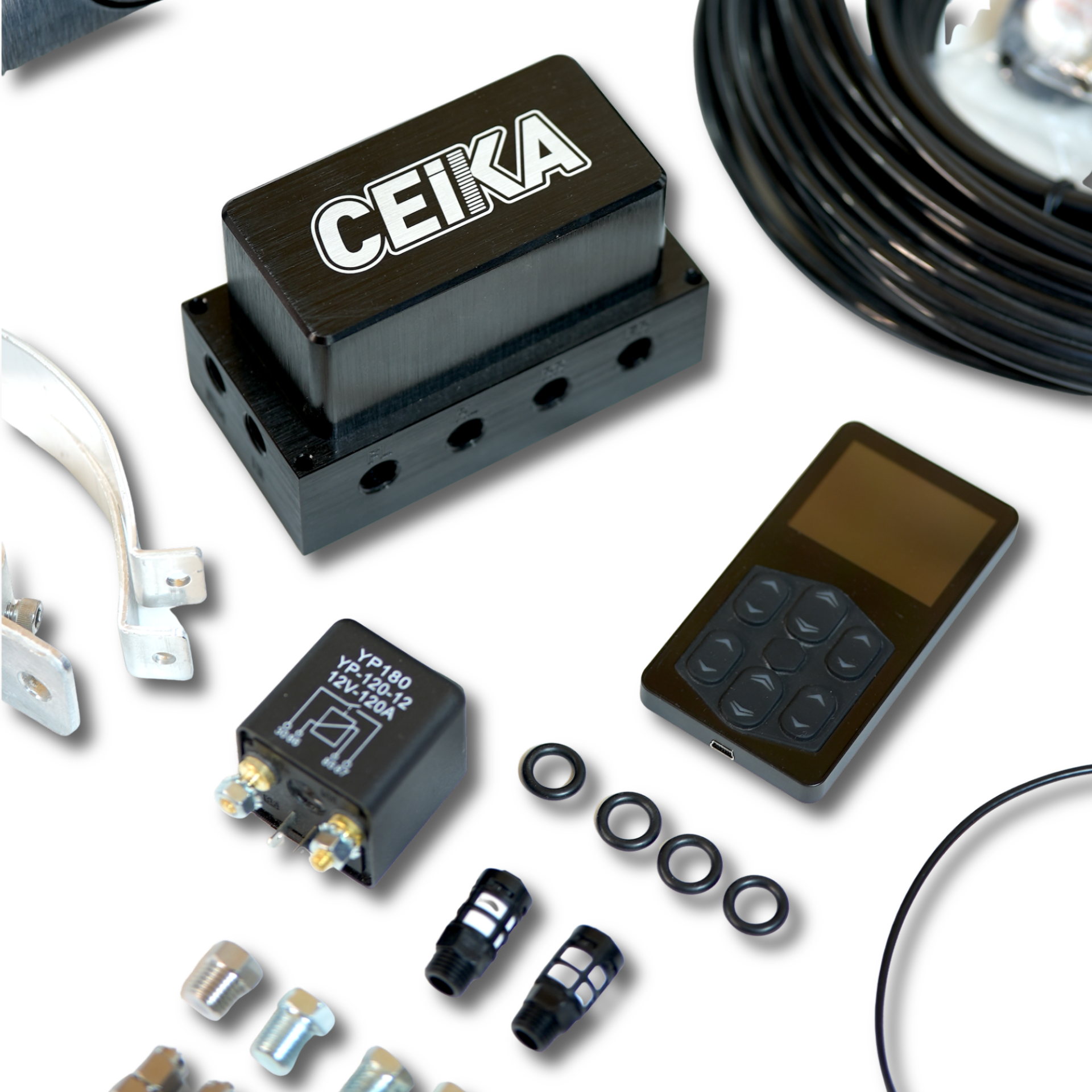

Display Remote with height presets and a more sophisticated Controller Unit packed with more Air Ride Control technology. This 4-way adjustable kit allows to adjust each corner up or down independently. It uses x8 Solenoids in a bigger valve manifold which provides a more precise control as well as a quicker inflation/deflation speed.
You can use the 4-Way system with the Display Remote and Key Ring Remote to adjust the height manually or using saved presets.
You can also upgrade to a Height Levelling Sensor Kit which allows to save presets based on actual corner height instead of corner pressure.
Why choose CEIKA? Since 2010, every CEIKA order is unique and fine tuned to match each use. Our customer service is dedicated to provide all the help and guidance you may need to complete your installation and fine tuning.
All our shocks are custom valved and dyno tested so that you will be guaranteed to get the closest ride quality and handling desired.
Compared to our 2M kits the 1M allow for ease of adjustability with a single 30-clicks adjustment knob providing matching adjustment of both compression and rebound together.
Please make sure that your car model matches the product title above before ordering. Regardless, we will confirm the details with you within 24h during week-days before confirming/shipping your order to avoid any mistakes. You will receive a complete bolt-on suspension system with the exact same bolting design/pattern as OEM. Custom built, developed and already fitted and approved for your car model.
The pictures above are generic and you will receive a complete bolt-on suspension system with the exact same bolting design/pattern as OEM. Custom built, developed and already tested on your car models and variant. This is why it is also important that the right car model is selected.
Our CEIKA Coilovers have been used since 2010 in all kind street and track cars: World Time Attack, King of Europe, GT3 racing and more.
CEIKA WARRANTY:
MANUFACTURING & SHIPPING:
01 / Your suspension
Air pressure and threaded shock length let you adjust the setup for your application. CEIKA custom valves and dyno tests the shocks, with support to help you install and fine-tune your kit.
Start with the coilovers and air bags, then choose how you want to control them: a manual front/rear system or electronic adjustment at each corner.
02 / Inside your kit

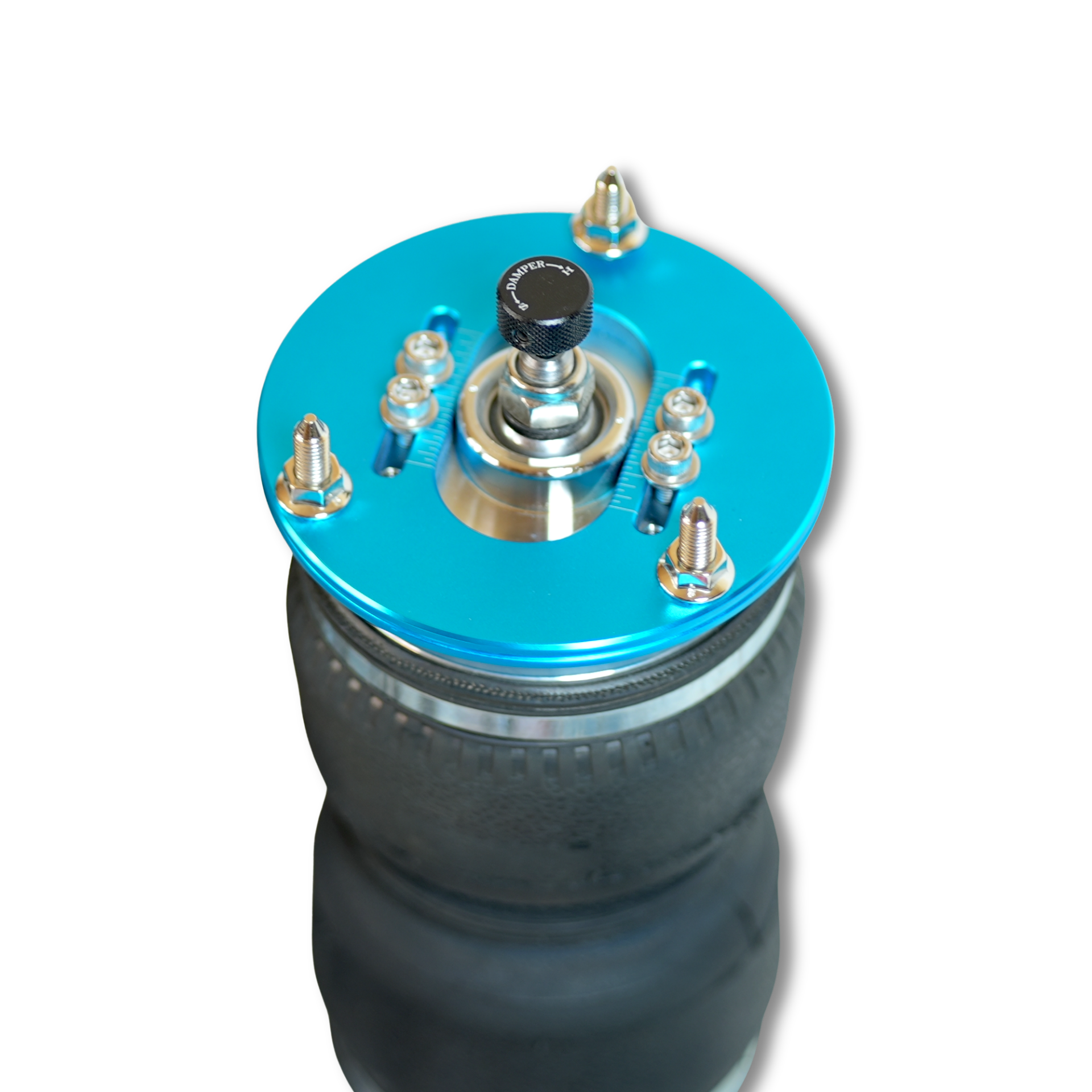

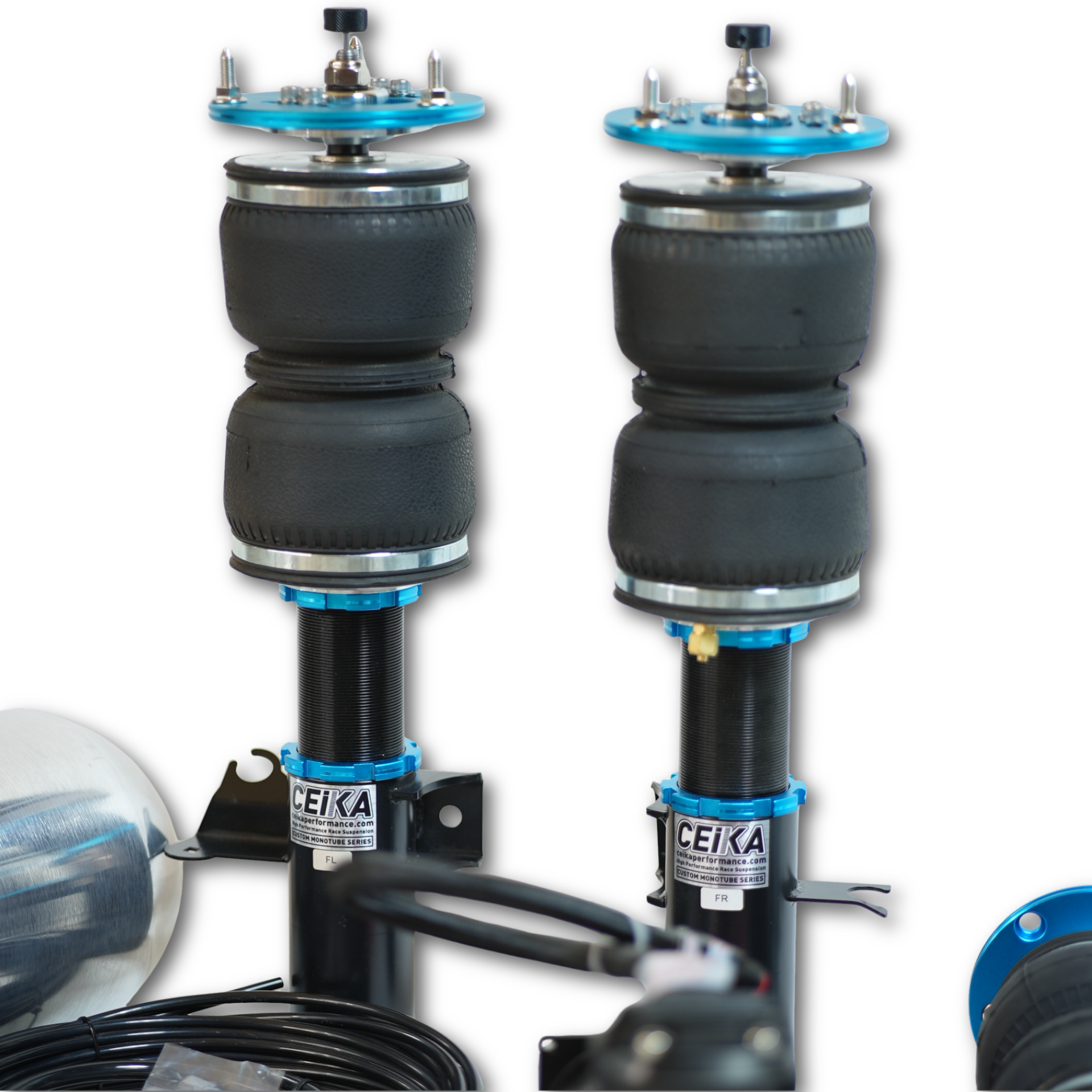

Fully threaded, rebuildable shocks with adjustment of air pressure and shock length.
Type 1M adjusts compression and rebound together. Type 2M separates those adjustments and adds external reservoirs.
10–15 cm base height adjustment, depending on application.
Dual bellow air bags or air sleeves, depending on application.
Choose manual front/rear pressure control or the available electronic 4-way corner control.

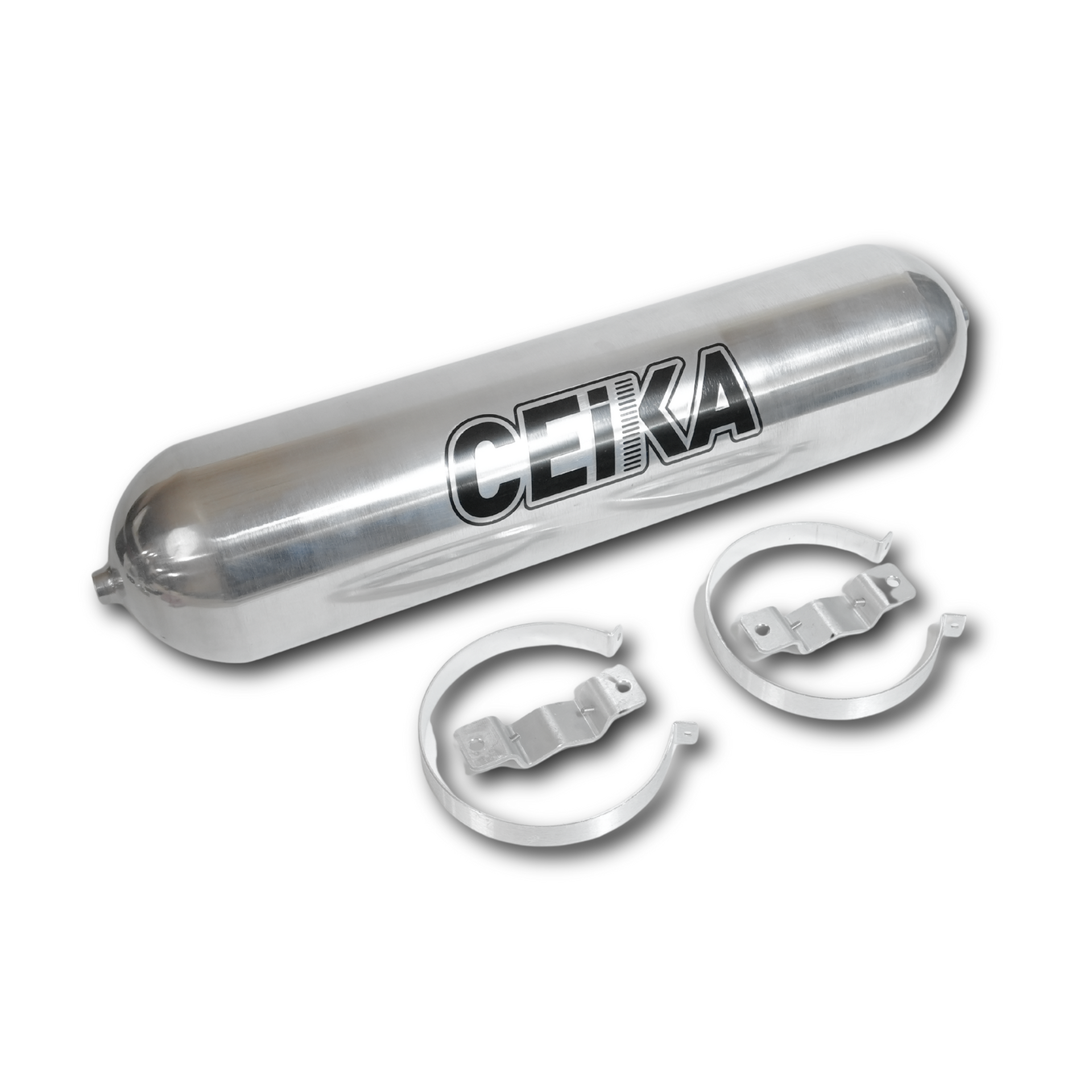

Choose a single or dual compressor and a black or polished stainless steel reservoir. These choices appear when you select a management system.
Building around your own management? Select None for the coilovers and air bags only. Compressor and tank charges are removed automatically.
Questions before you build?
Air management, fitment, installation and ownership — explained in one place.
Choose None for coilovers with air bags to use with your own system. Manual uses two pneumatic switches to adjust front and rear pressure; air hoses run to the switch panel. Pro Electronic Management offers the available 4-way control for individual corner adjustment.
The base kit contains the application-specific coilovers and air bags or sleeves. Management, compressor and reservoir are included according to your selections. The selected system contents and price breakdown show the components in your build.
Type 1M adjusts compression and rebound together. Type 2M provides separate compression and rebound adjustment with external reservoirs.
Select None for the coilovers and air bags only. The compressor, reservoir and management controls are hidden and their charges are excluded from your total.
The original product information describes these configurations, but they are not selectable in the current option set. Contact CEIKA to confirm availability and compatibility before ordering.
Match your model and year to the product title and use the vehicle fitment checker. CEIKA also confirms order details within 24 hours on weekdays before manufacturing. Product photos are generic; the kit is built for the stated application.
Check your vehicle fitment ↑The existing product information quotes 10–14 working days for standard spring rates and valving. Free DHL/UPS delivery from Taiwan typically takes 2–4 working days, with 2 additional days for remote areas. CEIKA confirms your specifications before manufacturing.
The two-year warranty covers manufacturing defects on coilovers, air bags, compressors, controller units and parts. CEIKA supplies revised or replacement parts free of charge if something does not fit or perform as it should.
CEIKA provides guidance for installation and fine tuning. Contact the team with your vehicle details and configuration for help.
